[javaFX] Getting Started Modular with Gradle Tutorial (Eclipse)

 - maven non-modular

 - gradle non-modular

 - maven modular

 - gradle modular <-





*** First. java 11 or higher download and install here

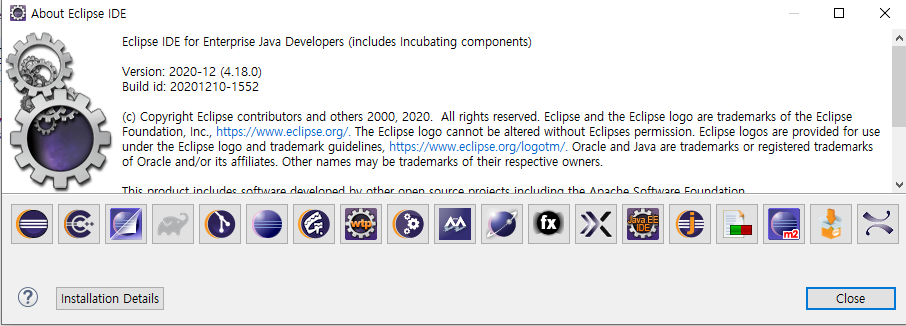

Eclipse info



1. Eclipse download here

   - Eclipse IDE install

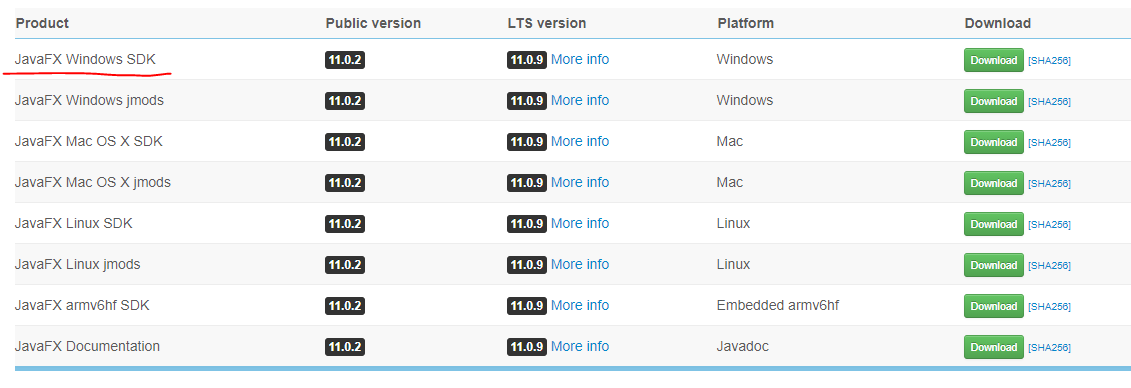

2. javaFX SDK Download here

JavaFX - Gluon

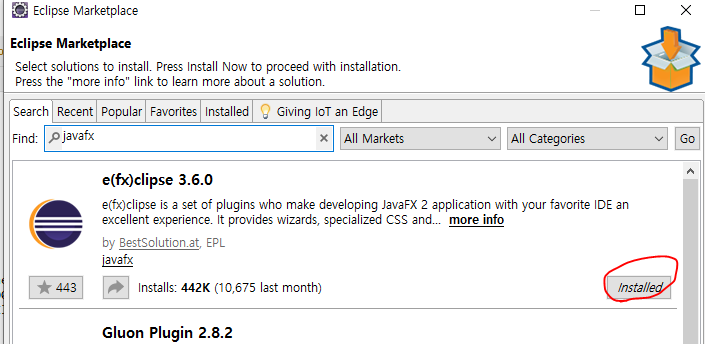

3. Eclipse -> Help -> Eclipse Marketplace...



4. search javafx -> e(fx)clipse install -> eclipse re-start

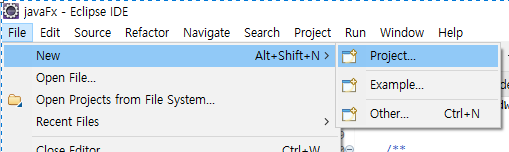

5. New -> Project...



6. Gradle Proejct -> Next

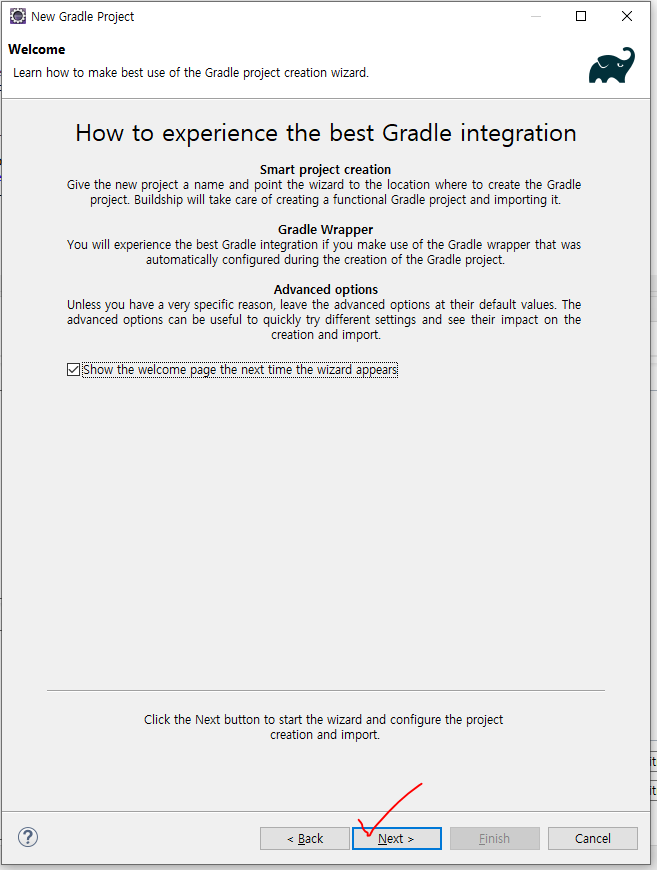

7. New

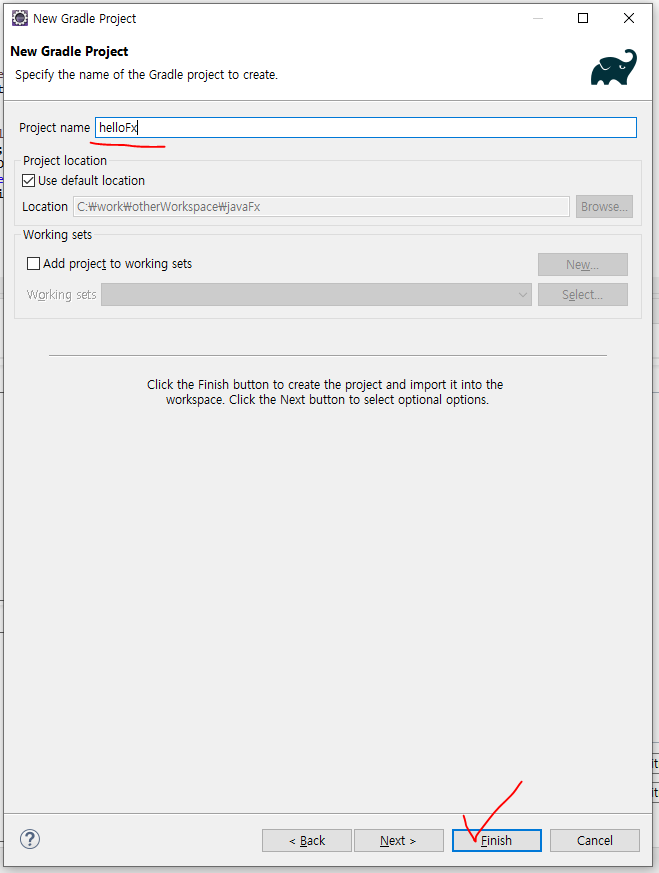

8. Project name : helloFx -> Finish

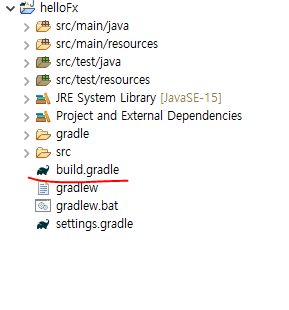

9. build.gradle open

10. modify

plugins {
  id 'application'
  id 'eclipse'
  id 'org.openjfx.javafxplugin' version '0.0.8'
  id 'org.beryx.jlink' version '2.12.0'
}

repositories {
    mavenCentral()
}

javafx {
    version = "11.0.2"
    modules = [ 'javafx.controls', 'javafx.fxml' ]
}

mainClassName = "helloFx.MainApp"

eclipse {
    classpath {
        file {
            whenMerged {
                entries.findAll { it.properties.kind.equals('lib') }.each {
                    it.entryAttributes['module'] = 'true'
                }
            }
        }
    }
}

jlink {
    options = ['--strip-debug', '--compress', '2', '--no-header-files', '--no-man-pages']
    launcher {
        name = 'helloFx'
    }
}

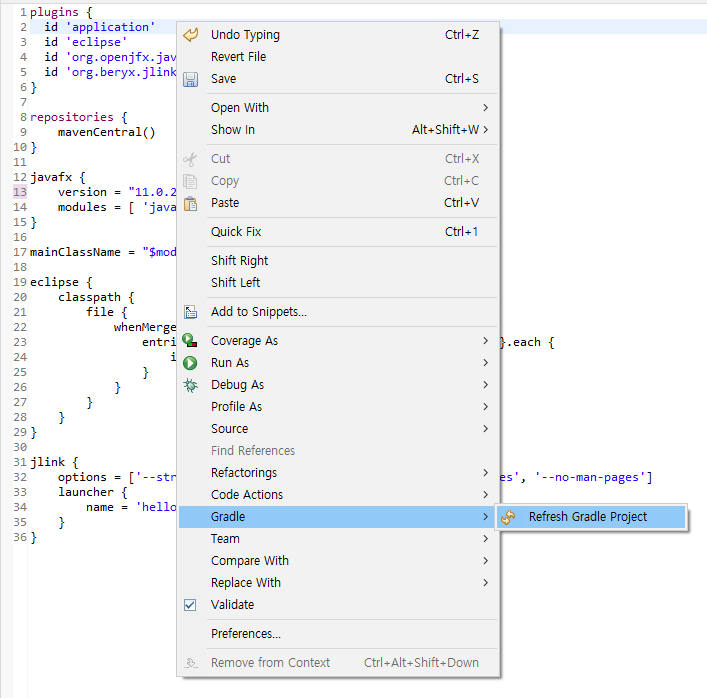

11. right-mouse click -> Gradle -> Refresh Gradle Project

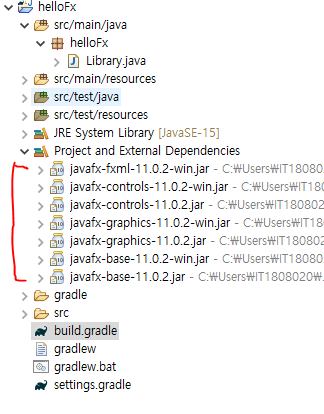

12. you can look  'Project and External Dependencies' -> javafx files..

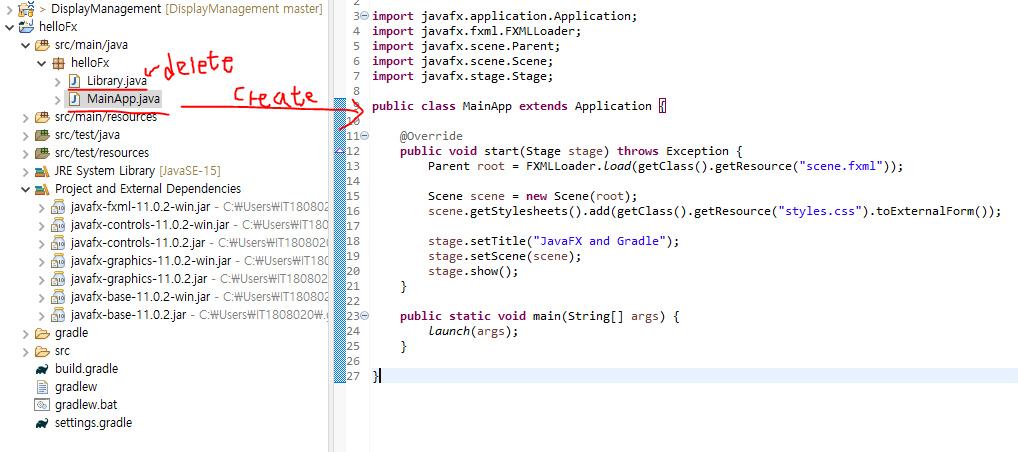

13. src/main/java/helloFx > Library.java delete > MainApp.java Modify

package helloFx;

import javafx.application.Application;
import javafx.fxml.FXMLLoader;
import javafx.scene.Parent;
import javafx.scene.Scene;
import javafx.stage.Stage;

public class MainApp extends Application {

    @Override
    public void start(Stage stage) throws Exception {
        Parent root = FXMLLoader.load(getClass().getResource("scene.fxml"));

        Scene scene = new Scene(root);

        stage.setTitle("JavaFX and Gradle");
        stage.setScene(scene);
        stage.show();
    }

    public static void main(String[] args) {
        launch(args);
    }

}

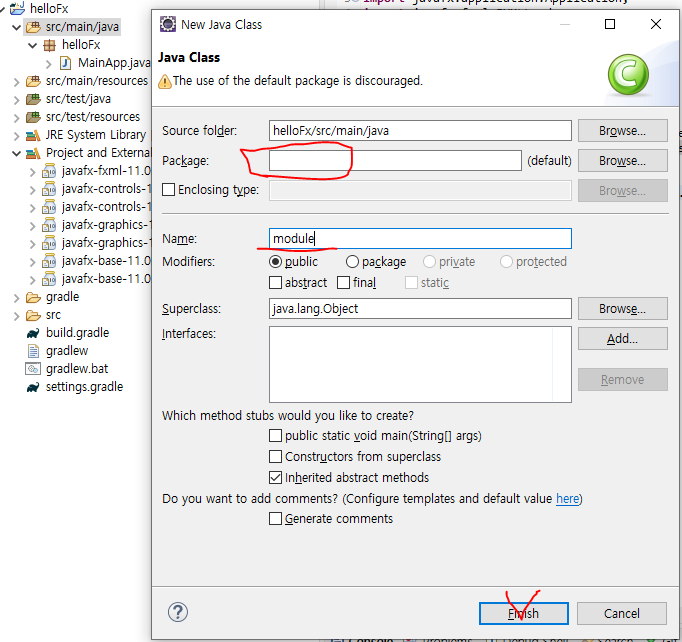

14. src/main/java right-mouse click -> New -> Class

   1) Package : (empty)

   2) Name : module

   And Finish

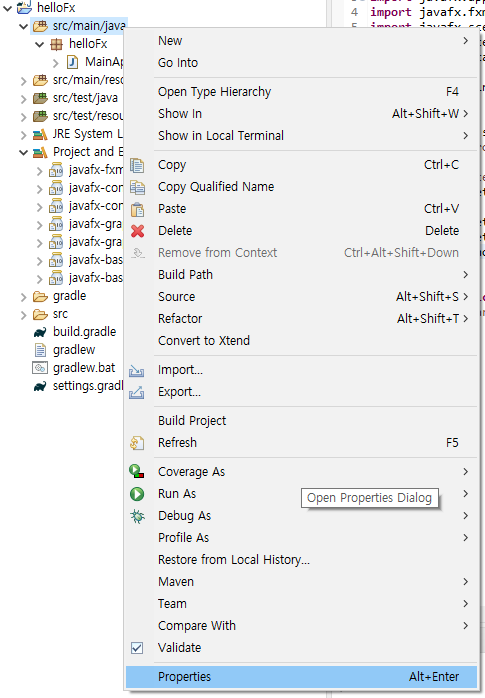

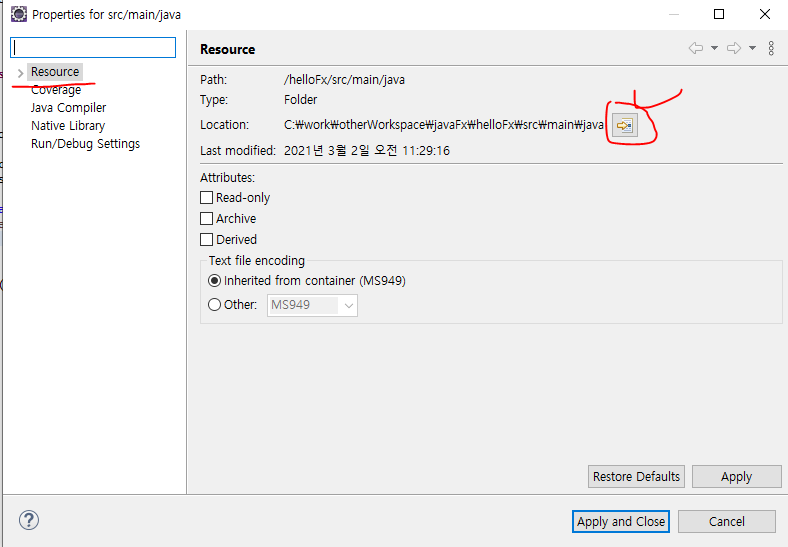

15. src/main/java right-mouse click ->Properties





16. Resource -> Location icon Click

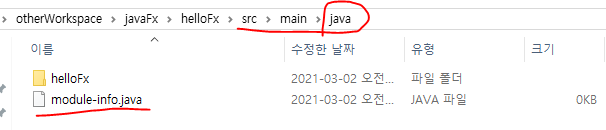

17. src/main/java/module.java -> Replace Name -> Module-info.java -> F5 Refresh

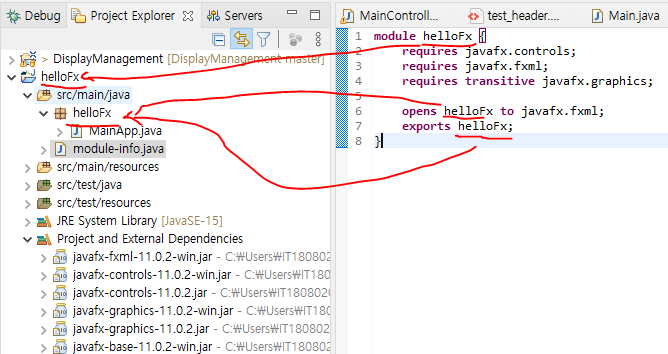

18. module-info.java modify

module helloFx {
    requires javafx.controls;
    requires javafx.fxml;
    requires transitive javafx.graphics;

    opens helloFx to javafx.fxml;
    exports helloFx;
}

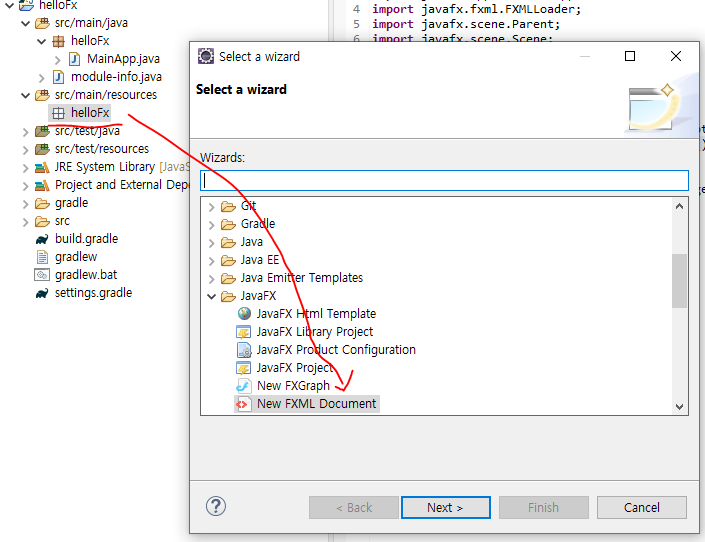

19. src/main/resources -> create package : helloFx -> helloFx right-mouse click -> new -> new FXML Document

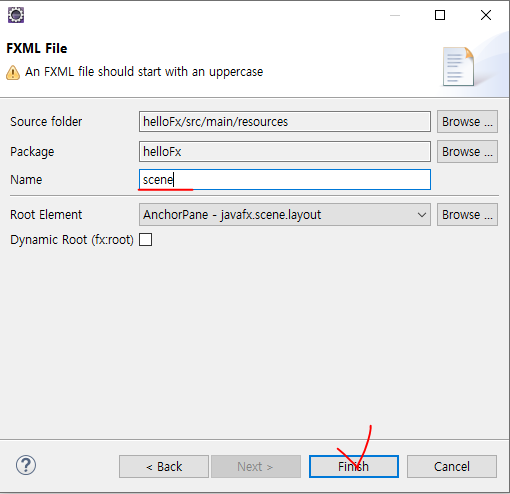

20. name : scene -> finish

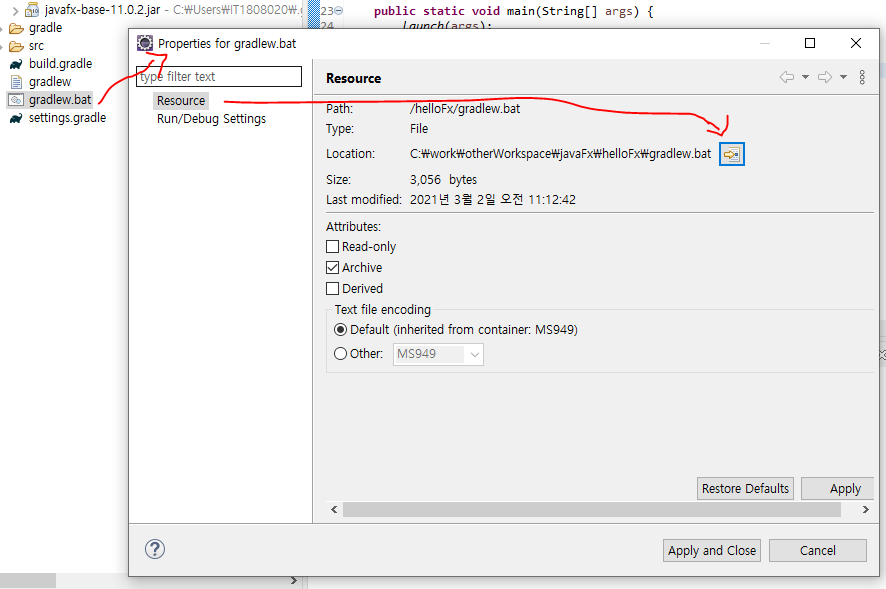

21. gradlew.bat -> right-mouse click -> Resource -> Location icon click

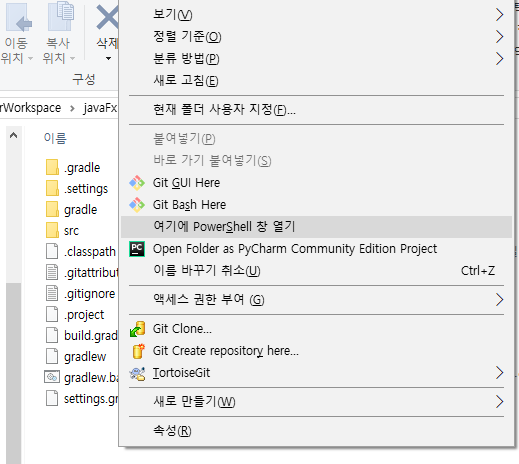

22. right-mouse click -> open PowerShell

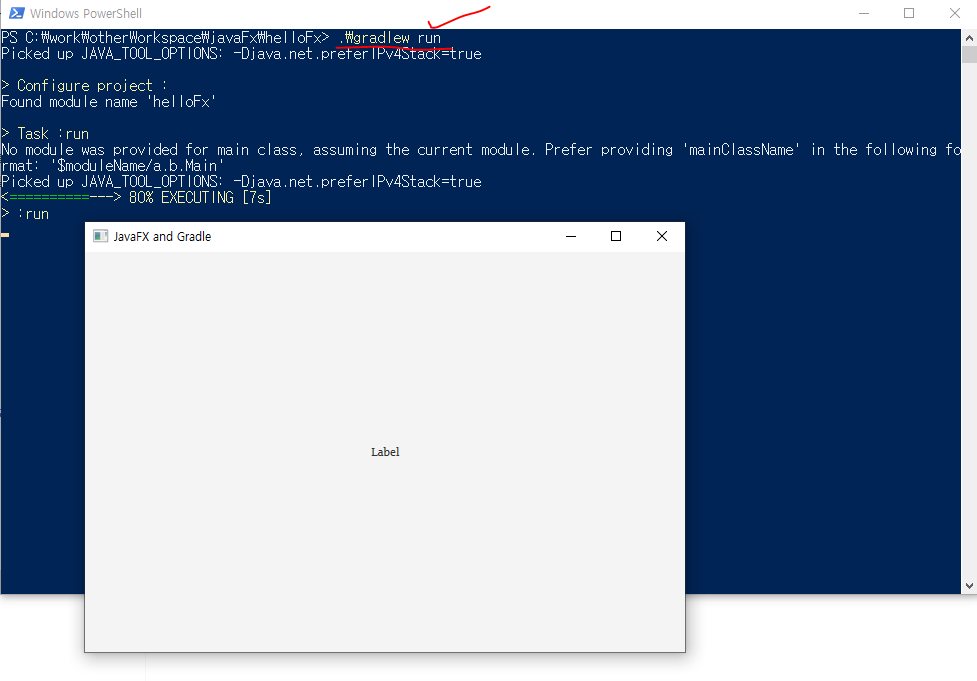

23. gradlew run

/\gradlew run
